Industrial Flanges

We can define the blind flange as a plate that is used to cover the end of a pipe. Here a flange joint is a connection of pipes in which the connecting pieces contains flanges with which the parts are bolted together.

• Size : 1/2" (15 NB) to 48" (1200NB)
• Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
• Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
• DIN : DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636,DIN 2637, DIN 2638, DIN 2673
• PN : PN6, PN10, PN16, PN25, PN40
• BS : BS 4504 , BS 4504, BS 1560, BS 10

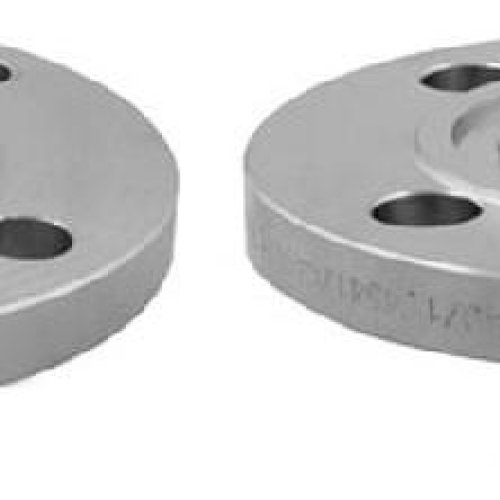

As being one of the most experienced Suppliers & Manufacturers of Steel Pipe Fittings & Groove Tongue Flanges in India, we are specialized in offering a broad range of Groove Tongue Flanges including pipe flange products in Alloy Steel, Carbon Steel & Stainless Steel. Our flanges are used in a variety of engineering applications. We provide this range in different grades like Stainless Steel ASTM A182 Stainless Steel Grade 304 Flanges, Grade 304L Flanges, Grade 304H Flanges, Grade 310 Flanges, Grade 316 Flanges, Grade 316L Flanges and Grade 316H Flanges.

• Size : 1/2"NB TO 60"NB IN
• Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
• Flange Facings : Raised Face, Ring Type Joint, Large Tongue & Groove, Small Tongue & Groove
• Available ASTM standard : ASTM / ASME SB 564 / 160 / 472.
• ASTM / ASME SB 61 / 62 / 151 / 152
  ASTM / ASME A/SA 182 UNS F 44
  F 45, F51, F 53, F 55, F 60, F 61.
  ASTM SA 240, ASTM A182
  ASTM SA 182 F1/F5/F9/F11/F22/F91
  ASTM A 105 Gr. F42/46/52/56/60/65/70
  ASTM A350 LF2/A350 LF3

IBR Flanges we offer belong to inventory having wide ranging options of size, shape and fabrication material. The production facility allows us to design and fabricate non IBR flange in India as per the requirement of our customers.

• Size : 1/2"NB TO 60"NB IN
• Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. Type IBR Weld Neck, IBR Â Socket Weld, BR Â Slip On, IBR Blind, IBR Lap Joint, IBR Screwed (Threaded), IBR Long Weld Neck, IBR Reducing, IBR Ring Joint, IBR Orifice, IBR Girth Flange and many more.
  We provide IBR and non IBR Flanges as per the INTERNATIONAL STANDARD ASTM, ASME, API, AISI, BS, ANSI, DIN, JIS, MSSP, NACE
• IBR Alloy Steel Flanges
• ASTM SA 182 F1/F5/F9/F11/F22/F91
• IBR Carbon Steel Flanges ASTMA 105 Gr. F42/46/52/56/60/65/70
• IBR LTCS Flanges A350 LF2/A350 LF3
• IBR Forged Fittings Size : 1/4"NB TO 4"NB IN

We stock all types of lap joint pipe flanges which are ready to ship. We also pay attention over the can also manufacture custom pipe flanges according to customer specifications. Lap joint pipe flanges are normally used with stub end fittings. It slides directly over the pipe, where a pipe is welded to the Stub End. The Lap Joint pipe flange is free to rotate around the stub end. Lap Joint pipe flanges are used for applications that need frequent dismantling.

• Stainless Steel : ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
• Duplex Steel : ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
• Carbon Steel : ASTM / ASME A 105. ASTM / ASME A 350 LF 2 .
• Alloy Steel : ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
• Nickel Alloy : ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS ( 6601 INCONEL 601 ) , UNS 6625 (INCONEL 625) , UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

Reducing Flanges are suitable for changing line size. These flanges are used on projects that require the fitting different sized pipes together.

If you have any query regarding materials and specifications of screwed flange, let us know about it. Our technology experts hold ability to understand the nature of your requirements. You are assured for a fast response time to satisfy all your pipeline and process requirements.

Slip on Flange is slightly larger than the outer diameter of the pipe with which the flange is to be used with. As the name it contains, the pipe is slipped into the flange prior to welding both, inside and outside.

• Size : 1/2" (15 NB) to 48" (1200NB)
• Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
• BS : BS 4504, BS 4504, BS 1560, BS 10
• DIN : DIN 2527, DIN 2566, DIN 2573, DIN 2576, DIN 2641, DIN 2642, DIN 2655, DIN 2656, DIN 2627, DIN 2628, DIN 2629, DIN 2631, DIN 2632, DIN 2633, DIN 2634, DIN 2635, DIN 2636,DIN 2637, DIN 2638, DIN 2673
• Dimensions ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
• Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.
• PN : PN6, PN10, PN16, PN25, PN40

The Pipe flanges are fabricated in all the different materials like stainless steel, aluminum, brass and cast iron. But due to sturdiness it offers, the forged carbon steel is used most. We offer socket flange constructed with all these materials with varied configuration. We assure our customer about the international standard quality of socket flange.

• Stainless Steel : ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
• Duplex Steel : ASTM / ASME SA 182 F 44 , F 45 , F51 , F 53 , F 55 , F 60 , F 61.
• Carbon Steel : ASTM / ASME A 105. ASTM / ASME A 350 LF 2 .
• Alloy Steel : ASTM / ASME A 182 GR F 5, F 9 , F 11 , F 12 , F 22 , F 91.
• Nickel Alloy : ASTM / ASME SB 564 UNS 2200 ( NICKEL 200 ) , UNS 4400 (MONEL 400 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS ( 6601 INCONEL 601 ) , UNS 6625 (INCONEL 625) , UNS 10276 ( HASTELLOY C 276 ) ASTM / ASME SB 160 UNS 2201 (NICKEL 201 ) ASTM / ASME SB 472 UNS 8020 ( ALLOY 20 / 20 CB 3 )

These Spectacle blind flanges in India are engineered with precision techniques under observation od talented and experienced team of engineers.

• Materials : ASTM A105 ,A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2 A516.60, A694 (F42, F46, F48, F50, F52, F56, F60, F65, F70 A182 F304/304L, F316/316L, F316H, F310, F321 A182 F11, F22
• Flange Size range : 1/2 to 56 inches (DN15 to DN1,400mm)
• Standards : API, ANSI, BS, JIS, UNI, MSS and SP
• Pressure : ANSI class 150 to 2,500
• Applications : Oil Field, Offshore, Water System, Shipbuilding, Natural Gas, Electric Power, Pipe Projects etc.

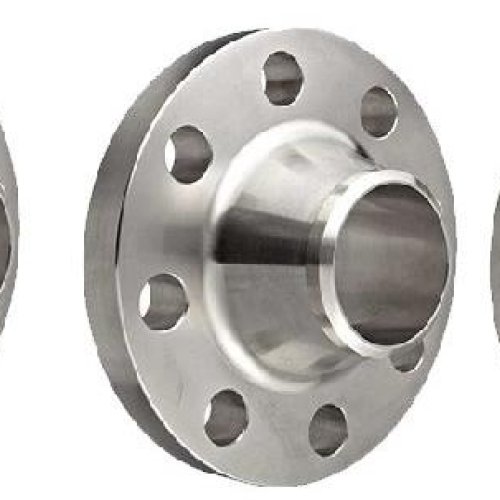

The Weld Neck Flanges in India are perfect choice for extreme fluctuations of temperature and environments where there may be excess bending and handling of the flanges. This flange has the buttweld joint.

Because the inside diameter of the flange should match the inside diameter of your pipe, at the time of order it is significant to specify the schedule pipe that is being used for. It has long tapered hub and are frequently used for high pressure applications.

• Stainless Steel : ASTM A 182, A 240
• Grade : F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L, Duplex stainless steel UNS S31803, 2205, Super Duplex stainless steel UNS S32750
• Class : 150#, 300#,400 #,600#,900#, 1500# & 2500#.
• Standard ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
• DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
• Size : 1/8" NB TO 48"NB
• Carbon Steel : ASTM A 105, ASTM A 181
• Copper Alloys : Copper, Brass & Gunmetal
• Nickel Alloys : Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22, C276
• Alloy Steel : ASTM A 182, GR F1, F11, F22, F5, F9, F91
